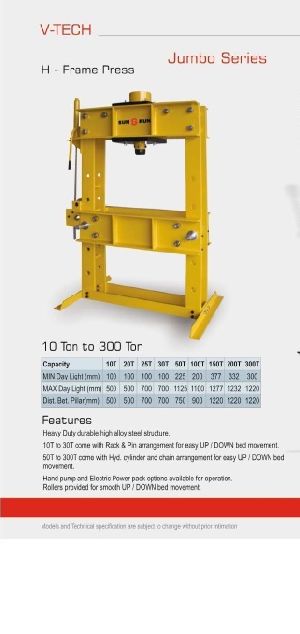

Hydraulic H Frame Press




With us, buyers can stay completely assured for top-notch products as we make use of the premium material and modern work methods for preparing them. Besides, the material is sourced from the genuine places. Clients can stay assured for the products that we offer, as they will remain damage free. For this, we make use of premium packaging material for wrapping them.



Features:

  • Capacity ranging from 10Tons to 300Tons
  • Hydraulic Presses have high strength structure and durable.
  • MOC - High Strength Structural Steel
  • Effortless Bed UP - DOWN Movement (Vertical)
  • Comes with Chain arrangement / Hydraulic System for easy UP/DOWN bed movement.
  • It has Multi selection for power source available such as Manual & Electric for operation.
  • Gauges and V-blocks can be bought as accessories.
  • Rollers are provided for smooth bed movement


Specifications

Capacity 10Tons 20Tons 25Tons 30Tons 50Tons 100Tons 150Tons 200Tons 300Tons
MIN Day Light(mm) 175 175 175 175 225 200 377 332 300
MAX Day Light(mm) 625 625 625 625 1125 1100 1277 1232 1220
Distance between Pillar(mm) 700 500 700 700 750 900 1220 1220 1220
