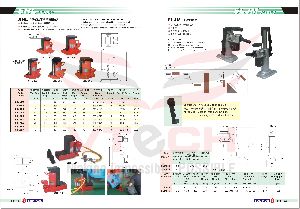

Hydraulic Toe Lift Jack




Hydraulic Bottle Jack with Toe Lift has Carbon steel base with automatic welding makes stable quality. It is chrome plated plunger resists corrosion and extends life. High strength toe-lift by alloy steel forming. For any heavy equipment lifting or check level with minimum available access.



Manual Hydraulic Cylinder with Toe-Lift

  • Carbon steel base with automatic welding makes stable quality

  • Chrome plated plunger resists corrosion and extends life

  • High strength Toe-Lift by alloy steel forming

  • For heavy equipment lifting or check level with minium available access



Specifications

Model Number Toe Cap. Toe-Lift Cap Stroke Coll Height Ext height Plunger Dia. Base Dimensions Height Toe Lift Base Weight
  (Tons) mm cm3 (mm) (mm) (mm) (mm)
SHL-5 5 2.5 117 228 345 28 145X130 16 69X45 8.5
SHL-10 10 5 147 282 429 42 185X235 22 98X55 20
SHL-20 20 10 152 310 462 55 240X202 25 123X63 31.5
SHL-30 30 15 155 330 485 62 265X220 28 149X60 44
SHL-50 50 25 155 370 525 85 340X280 40 190X75 88.5
SHL-10P 10 5 147 266 413 42 125X275 50 100X100 20
