V-tech Power Hydraulics

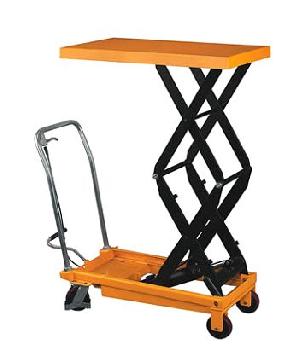

Manual Scissor Lift




Manual Scissor Lifts reduces need to bend to pick up goods, saving labour input to enhance work efficiency. It is used in applications like loading & unloading of goods in warehouse, conveying and lifting parts along assembly lines. It is suitable for heavy-duty applications or short lifting distance. Low load capacity, high lifting height makes work platforms very convenient for general maintenance work.

Features:

  • Available in different Table Sizes & Loads
  • Mobile and stationery
  • Platform is covered with optional checked plate
  • Improves efficiency & safety of men & material
  • Foot operation


Specifications


Model #

VND-SLTT-150

VND-SLTT-500

VND-SLTT-1000

VND-SLTT-350D

VND-SLTT-800D
Capacity (Kgs) 150 500 1000 350 800
Min. platform height (mm) 220 285 380 355 445
Max. platform height (mm) 720 880 990 1300 1300
Platform size (L x W) (mm) 700 x 450 815 x 500 1016 x 510 910 x 500 1220 x 610
Foot pedal cycles to max. height 28 27 82 53 97
