V-tech Power Hydraulics

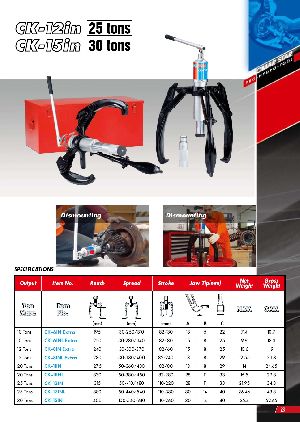

Self Contained Hydraulic Cobra Puller




By making use of quality packaging material, we pack the entire lot in a safe manner ensuring zero damage at buyer's end. The packing procedure is conducted under the guidance of experts. Our up-to-date logistic facilities support us in meeting the delivery deadlines promised to the customers.



Features:

  • 2 / 3 Jaws combination puller head.

  • LIFE TIME WARRANTY for COBRA JAWS (black ones)

  • Fast adjusting nut allows speedy adjusting reach.

  • The spring-loaded centre point of the hydraulic spindle allows easy centering the puller on the shaft.

  • Complete hydraulic puller allows effortless generation of force and dismounting.

  • The spring-loaded centre point of the hydraulic spindle allows easy centering the puller on the shaft.

  • Forging parts and special treatment provide long life service and the best strength.



Specifications

Life time warranty for Cobra jaws (2/3 Jaws)
Model No Output (Tons) Reach (mm) Spread (mm) Stroke (mm) Weight (kg)
CK-6IN Extra 10 195 30-250/310 82-130 10.7
CK-6INL Extra 10 250 30-280/340 82-180 18.3
CK-6INB Extra 10 195/250 30-280/340 82-180 14.1
CK-8IN Extra 12 240 30-300/370 82-160 19
CK-8INL Extra 12 280 30-330/400 82-240 23.3
CK-8INB Extra 12 240/280 30-330/400 82-240 24
CK-11IN 20 275 50-360/450 82-180 24.65
CK-11INL 20 330 50-380/450 82-280 29.3
CK-11INB 20 275/330 50-380/450 82-280 32.8
CK-12IN 25 315 50-410/480 110-220 34.8
CK-12INL 25 380 50-440/540 110-330 43.8
CK-12INB 25 315/380 50-440/540 110-330 64.35
CK-15IN 30 405 100-540/610 110-260 52.65
