Self Contained Hydraulic Puller




We feel proud in introducing ourselves as a stupendous Exporter and Supplier of Self Contained Hydraulic Puller from Maharashtra, India. We have a huge network of distributors and logistic service providers that enables us to make smooth delivery of Self Contained Hydraulic Puller that too at the most competitive price. Our company assures to deliver Self Contained Hydraulic Puller on timely basis to almost everywhere.


Details :

  • Self-Contained Hydraulic Puller, no need for extra hand pump, hose and coupling, allows
  • operating by one person.
  • 2. 2 / 3 jaws combination puller head.
  • 360oRotary handle swivel clevis allows pumping at all directions.
  • Jaws in 2 lengths, user can choose jaws according to needs.
  • Fast adjusting nut allows speedy adjusting reach.
  • Safety valve minimizes the risk of the puller overload by limiting the applied force.
  • Complete hydraulic puller allows effortless generation of force and dismounting.
  • The spring-loaded centre point of the hydraulic spindle allows easy centering the puller on the shaft.
  • Forging parts and special treatment provide long life service and the best strength.

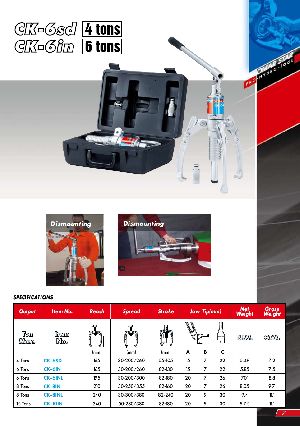

Specifications

Output (Ton Max) Item  No. Reach (mm) Spread (mm) Stroke (mm) Jaw Tip (mm)      Net Weight Gross Weight
4 Tons CK-6SD 165 30-200/260 55-105 15 7 22 5.49 7.2
6 Tons CK-6IN 165 30-200/260 82-130 15 7 22 5.85 7.5
6 Tons CK-6INL 195 30-200/300 82-180 20 7 26 7.01 8.8
8 Tons CK-8IN 210 30-250/355 82-160 20 7 26 8.05 9.7
8 Tons CK-8INL 240 30-300/380 82-240 20 9 30 9.4 11.1
15 Tons CK-10IN 240 50-280/380 82-180 20 9 30 9.75 11.1
6 Tons CK-6INB 165/195 30-260/300 82-180 15/20 7 22/26 8.44 10.3
8 Tons CK-8INB 210/240 30-300/380 82-240 20 7/9 26/30 11.48 13.13
