Separable Type Hydraulic Puller




With the assistance of advanced machines, equipment and quality packing material, we pack the products in safe and rapid manner. In addition, we make sure that the entire lot is checked before dispatch. For the convenience of customers, we issue an invoice to them including details of transaction. Moreover, we maintain transparency in our payment procedure and dealings.



Capacity : 15 - 50 Tons



Features:

  • 2 / 3 jaws combination puller head.

  • Fast adjusting nut allows speedy adjusting reach.

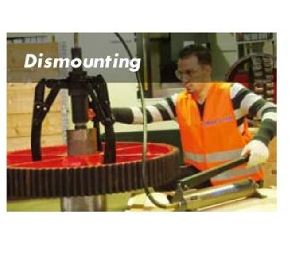

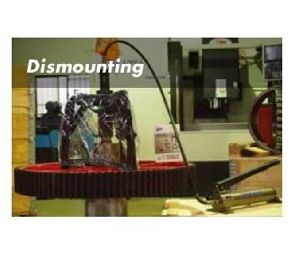

  • Complete hydraulic puller allows effortless generation of force and dismounting.

  • The spring-loaded centre point of the hydraulic spindle allows easy centering the puller on the shaft.

  • Forging parts and special treatment provide long life service and the best strength.

  • Jaws in 2 lengths, user can choose jaws according to needs (CK-105B).

  • Life time warranty for cobra jaws (black ones).

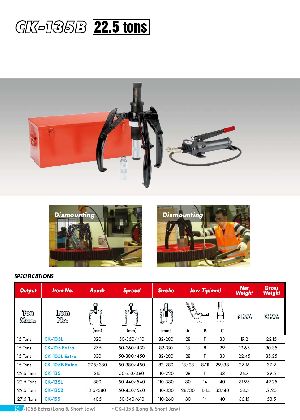

Specifications

Output (Ton Max) Item   No. Reach (mm) Spread (mm) Stroke (mm) Jaw Tip (mm)  Net Weight (Kgs) Gross Weight (Kgs)
15 Tons CK-105 240 50-280/380 82-180 20 9 30 15.26 26
15 Tons CK-105B 240/320 50-350/410 82-280 20/28 42989 30/33 23.4 34.15
15 Tons CK-105L 320 50-350/410 82-280 28 11 33 19.2 22.15
15 Tons CK-105 Extra 275 50-360/430 82-180 18 8 29 19.65 30.35
15 Tons CK-105L Extra 330 50-380/450 82-280 28 11 33 22.45 35.25
15 Tons CK-105B Extra 275/330 50-380/450 82-280 18/28 42958 29/33 27.16 37.9
22.5   Tons CK-135 315 50-410/480 110-220 28 11 33 26.7 39.5
22.5   Tons CK-135L 380 50-440/540 110-330 30 14 40 31.95 49.25
22.5   Tons CK-135B 315/380 50-440/540 110-330 28/30 43053 33/40 38.5 51.25
27.5 Tons CK-155 405 50-540/610 110-260 30 14 40 36.15 53.5
50   Tons CK-25IN Extra 465/635 580-1000 125-425 40 29 48 138.5 167.2
50   Tons CK-25INS Extra 465 580-750 125-275 40 29 48 94.6 123.3
50   Tons CK-25INL Extra 635 580-1000 125-425 40 29 48 106.15 133.5
